Small Trim Picker


Click the Thumbnails for a larger picture

Here are a set of rebuilt Trim Pickers (will separate). The Main cylinders have been replaced with a pinned roll (see picture). Each pin is threaded into the roll for easy replacement. These units were built with for the fiberglass industry, but would work equally well in other non-woven application. Send samples of your material and we will run it and send you the output.

Specs at a glance:

1 HP feed roll motor (w/ variable speed gearbox)

5 HP main motor

Dual wire clothed feed rolls 3" dia

12" dia. (across pins) main cylinder

8" infeed width

If you have any questions please feel free to give us a call 704-739-2121

The Pair

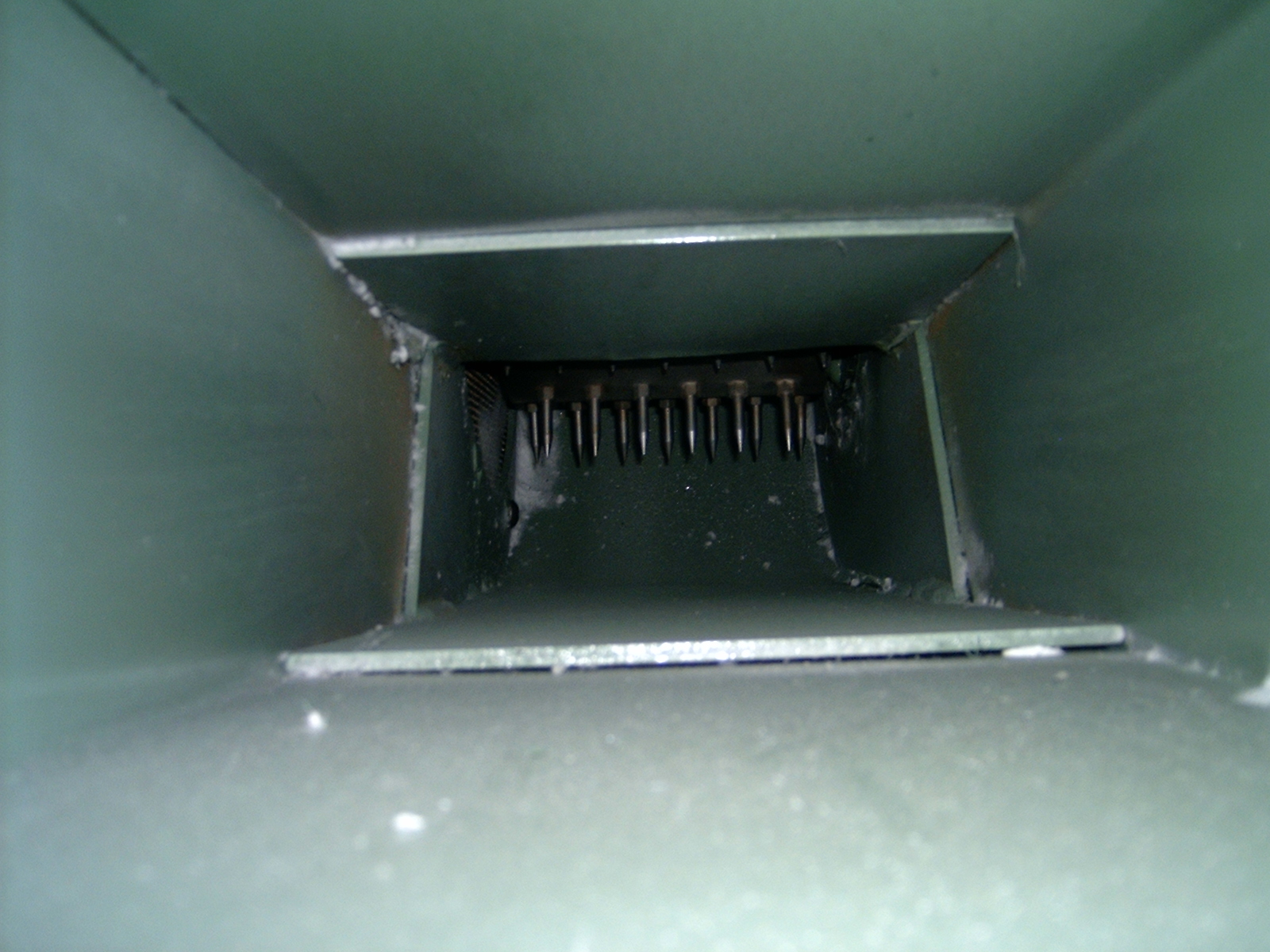

A Look Inside

(Looking down the outfeed chute)

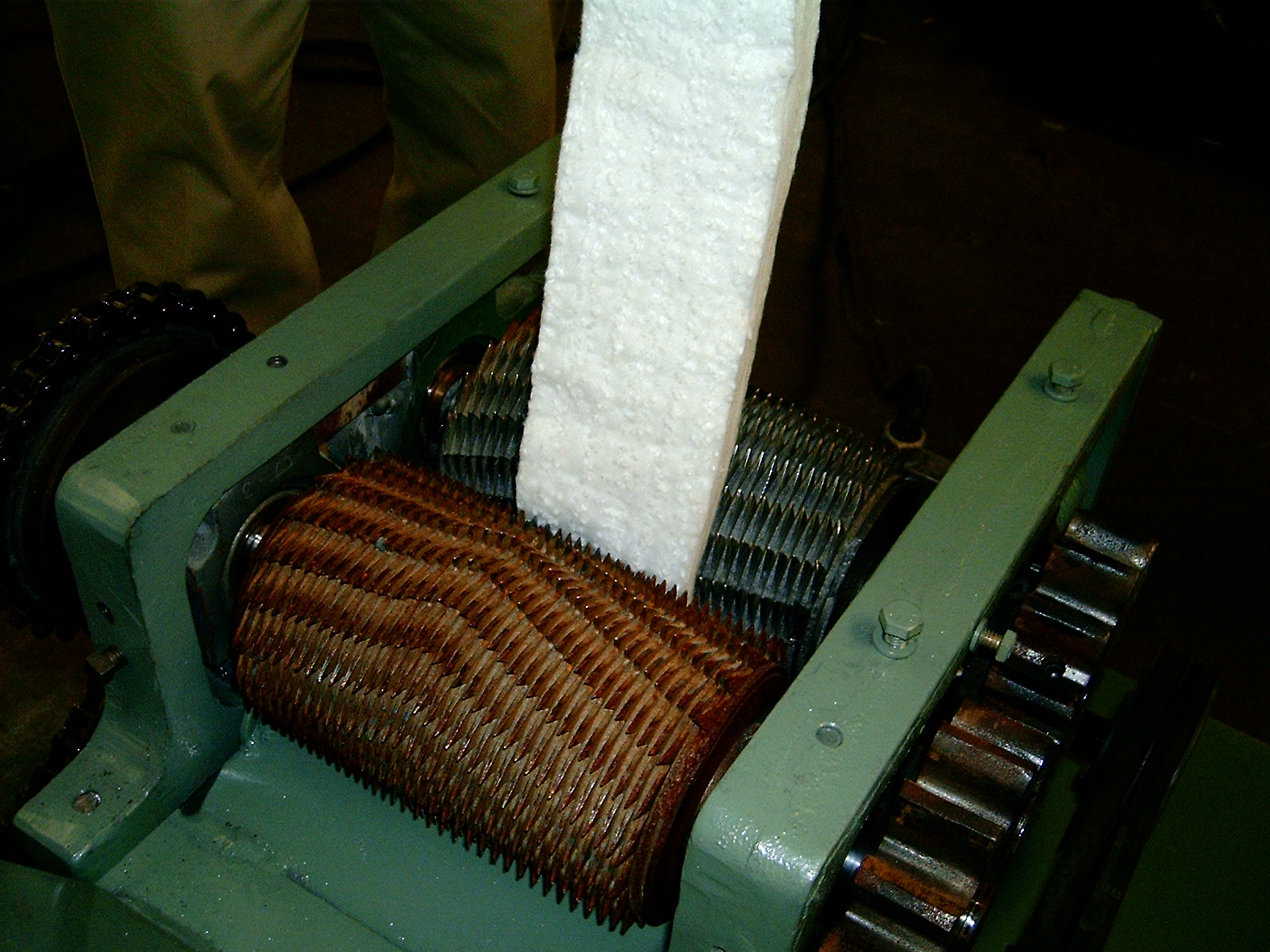

Wire Feed Rolls
