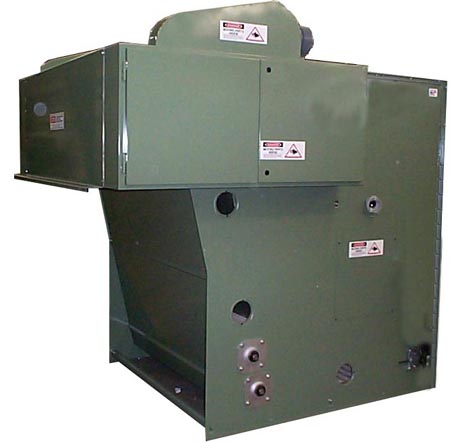

DTM Feeder

A feeder (aka hopper) serves two basic functions.

First, it acts as a reserve, holding fiber until it is needed. The feeder can be fed by four means:

  • Hand
  • Extended Apron
  • Bale Breaker
  • Distributor / Air Box

    • Second it meters the fiber out to the next machine in the process. Examples are:

  • Weigh Pan
  • Shaker Chute
  • Wire Opener
    •






    Machine Width

    		 36" & 48" 60" & 72" 84" & 96"


    Production (lb/hr)

    		 1200 / 1600 2000 / 2400 2400 / 3200


    Horsepower




    Doffer

    		 1 HP 1 ½ HP 2 HP


    Lift apron

    		 ½ HP ¾ HP 1 HP


    Nose height

    		 57" 57" 57"
      Inside width 36" / 48" 60" / 72" 84" / 96"







    Related Equipment
