D-106 Distributor

D-106 x 36"*

  • Production (Lb/hr) = 2000

  • Air Capacity (cfm) = 3500

  • Staple Length <=3"

  • Horsepower = 1

  • Height (in) = 37

  • Depth (in) = 24

  • Weight (lb) = 575

  • Inlet Height (in) = 37

  • Outlet Height (in) = 21 ½

  • Optional outlet valve for multiple system integration





*OTHER WIDTHS AVAILABLE CALL WITH YOUR SPECIFIC NEED

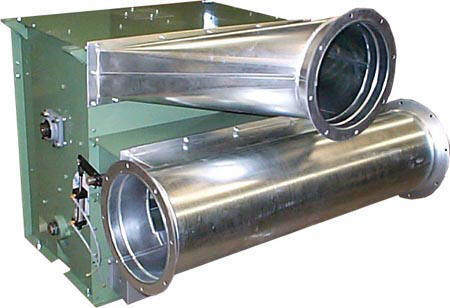

D-106 with:

12" dia. Inlet Transition

12" dia. barrel outlet

Butterfly valve on outlet


Related Equipment

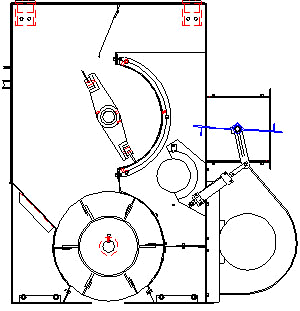

Sketch of inside
